♦ Cold startup ♦ Wide operating voltage range
Features:
♦ DC brushless motor with long lifetime
♦ Heavy duty work, can sustain continual 24 hours
♦ Sustain -40~90°C, suitable for extreme outdoor environment
♦ Durable permanent magnetic rotor/impeller & fineceramic shaft
♦ Advanced magnetic drive technology for static-impeller,without any leakage for ever
♦ The motor with big machine movement optimization design, has very low temp rise
♦ Automatic polarity protection, overload protection, block protection special design to meet car vibration working condition, special design to meet car power supplying way which occur high peak voltage or unstable voltage
♦ Equipped with specializing car water-against connector
♦ Applied liquid: pure water, antifreeze solution
♦ IP protection level : IP 67
♦ Low or no maintenance
♦ Low power consumption
Protection functions:
·Automatic polarity protection ·Blocked protection
1. With 20mm Inlet/Outlet standard car connection and specialized water-proof connector, then the pumps can be quickly and efficiently integrated into vehicles.
2. With -40°C~125°C working temperature, TOPSFLO TA50 engine pre-heating & parking heater pumps provide the vehicles an efficient working environment even at extreme outdoor temperatures and in bad weather conditions.
3. Special design to meet car vibration working requirement, car power supplying way which occur peak voltage or unstable voltage.
4. With polarity protection function, then the pump will not burned by wrong wiring.tailored to the specific vehicle system.
| Model | TA50E |
| Max Flow Rate | 23L |
| Max Static Lift | 2.5M 3M |
| Rated Voltage | 12V 24V |
| Impeller Type | Open impeller |
| Liquid Temperature | -40-90°C |
| Pump Theory | Centrifugal pump |
| Motor Type | Brushless DC motor |
| Media | Pure Water,antifreeze,coolant |
| Waterproof Class | IP67 |
| Use Place | Indoor |
| Working Voltage Range | 6~16V 12~28V |
| Ideal Life Time | 20000 Hours |
| Working Mode | Continuous |
| OD of Inlet | 20mm |
| OD of Outlet | 20mm |
| Power Supply | DC power supply, battery |
| Protection Functions | polarity protection ·Blocked protection |
| Customization |
FG / 5V / PWM
|
| Remarks | Can’t dry-running, not Self-priming |

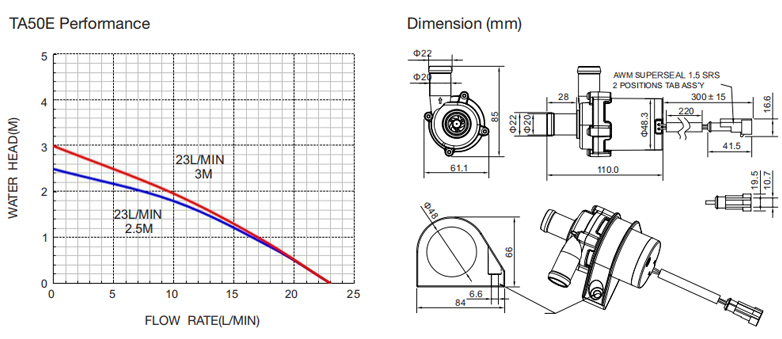

| Model | Product Code | Max Water Flow (L/Min) | Rated Voltage(DC) | Rated Current (A) | Max Water Head(M) | Rated Power(W) | |
| TA50E | TA50-A12-2302 | 23 | 12 | 1.25 | 2.5 | 15 | |
| TA50-A12-1501 | 23 | 12 | 0.4 | 1 | 4.8 | ||
| TA50-A24-2303 | 23 | 24 | 0.75 | 3 | 18 | ||
