■ Overview
Servers & Data Center Liquid Cooling Pump Features:
1. DC brushless motor with long lifetime more than 50,000 hours .
2. Low noise: ≤26dB, at 1 meter distance.
3. Heavy duty work, can sustain continual 24 hours.
4. Durable permanent magnetic rotor/impeller & fine ceramic shaft.
5. Advanced magnetic drive technology for static-impeller, without any leakage for ever.
6. Low or no maintenance.
7. Low power consumption.
8. Small footprint.
9.Intelligent Control like PWM, 0-5V or FG, I2C

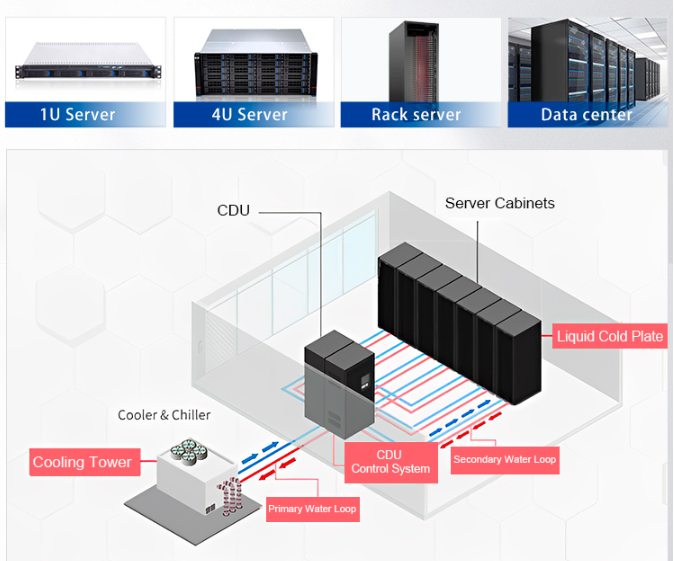

Application:
Servers Cooling / Data center Cooling /
High-Density Server/ Rack Servers/ GPU Server/High Frequency Server
Cryptocurrency mining servers, chip cooling
Radiator Cooling / Heat Sinks Cooling
PC Cooling / CPU Cooling
CDU Cooling
Electronics Cooling
Laser Cooling
Chiller Systems
Liquid Transfer
 |
 |
 |
■ Specifications
|
Model
|
Product Code
|
Rated
Voltage(VDC)
|
Max Water
Flow(L/min)
|
Max Water Head(M) |
Rated
Current(A)
|
Rated
Power (W)
|
|
TDC
|
TDC-A12-0502
|
12 | 5.4 | 2.5 | 0.46 | 5.52 |
|
TDC-A12-0805
|
12 | 8 | 5 | 1.42 | 17.04 | |
|
TDC-B12-0805
|
12 | 8 | 5 | 1.42 | 17.04 | |
|
Standard configuration: 1. /PWM or /5V speed control 2. FG (RPM) signal wire 3. LHE- 4PConnector
|
||||||
■ Parameter

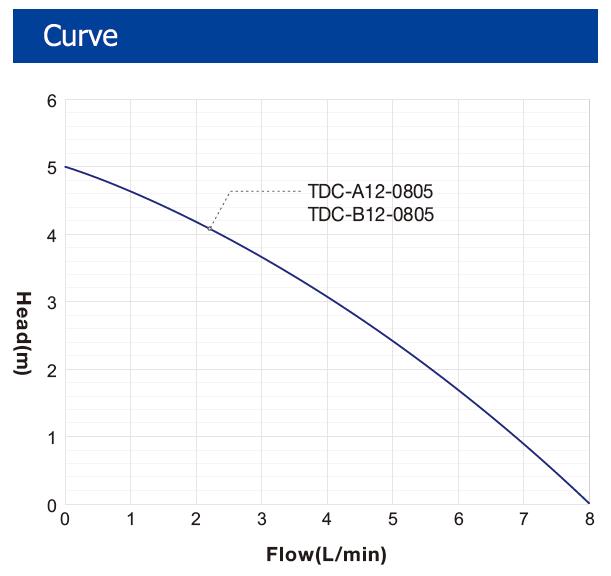

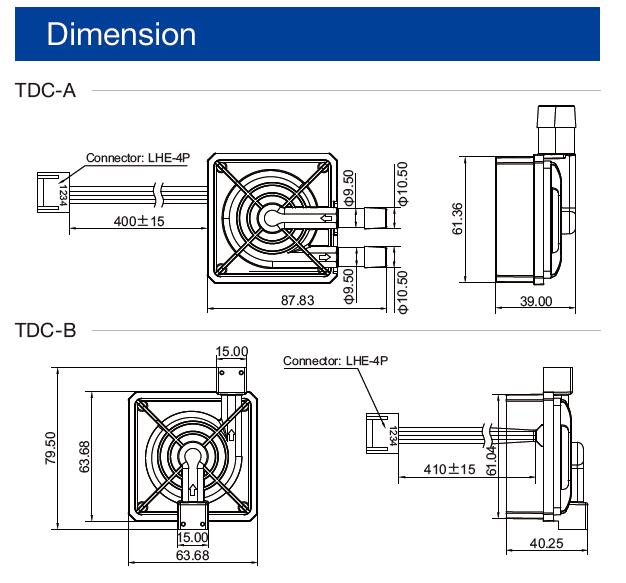

■ Curve & Dimension
