■ Overview
Features:
• Self priming, compact size and excellent for pressure
• Resistant materials to transfer aggressive media
• Dry running, durable and maintenance free
• Great adjustability of flow rate
• Clean and gentle transfer of sensitive media
Application:
Inkjet Printing | Medical Equipment
Analytical Instruments | Lab Equipment
Emission Monitoring | Fuel Cells | Cleaning & Disinfection
Food | Auto Chemistry Analyzer | Fireplace
■ Specifications
| Liquid Pump (Item Number) |
Rated Voltage(VDC) |
No-load Current(A) |
Max Head(bar) |
Max Vacuum(Kpa) |
Max Flow (L/min) |
| TF22-A24-C06-W6003 | 24 | 0.28 | ≥6bar | 30 | 0.3 |
■ Parameter
Technical data
| Motor | BLDC motor |
| Structure | Diaphragm Pump |
| Media | Ink, water, most liquids and gases |
| Material | Head Nylon, Membrane EPDM, Valve EPDM |
| Operating Voltage Range | 24V: 18~28VDC |
| Lifetime | 10000 hours |
| Working Mode | Interrupt |
| Work Temperature Rise | <70℃ |
| Customized Support | 5V,PWM, FG, Material: membrane / valve / pump head |

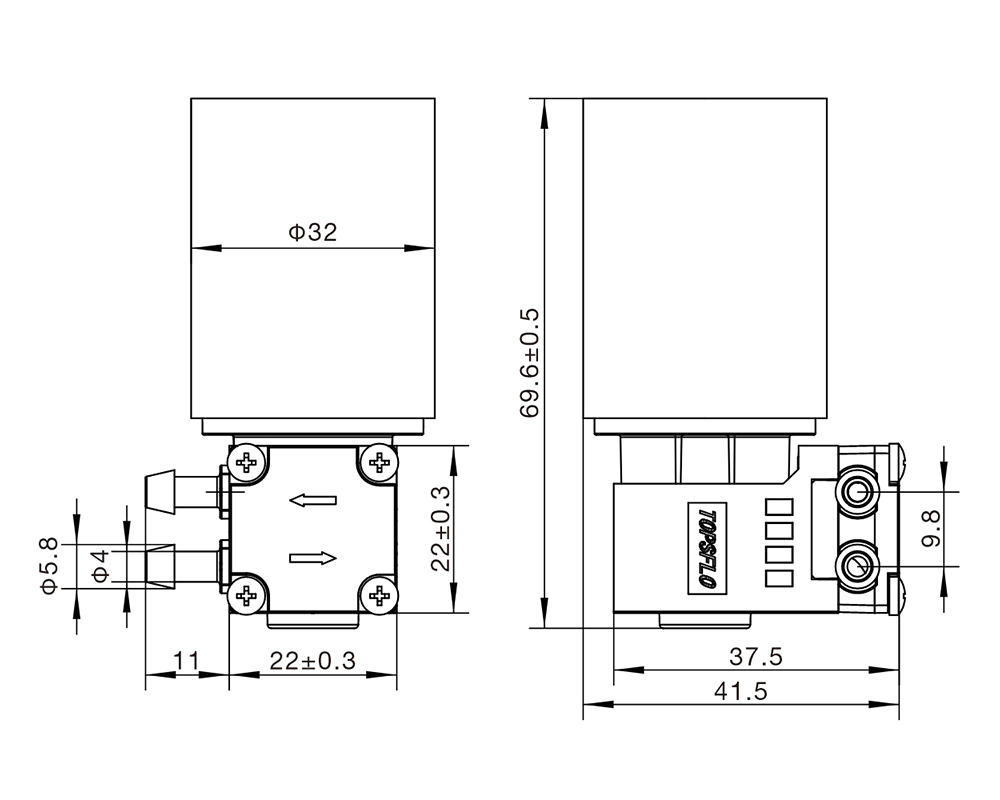

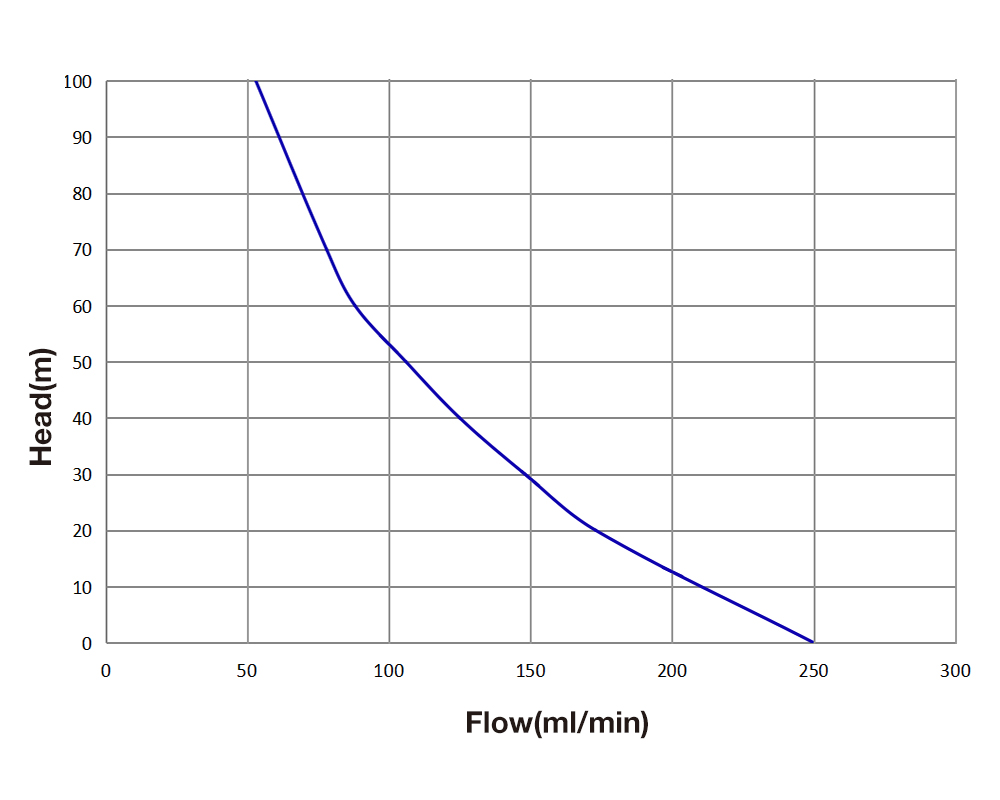

■ Curve & Dimension
