■ Overview
MG300 Series / Magnetic Drive Micro Gear Pump ( DC brushless motor, inside controller)
Introduction:
1 .Magnetic gear pumps, using magnetic coupling drive without leakage,316 stainless steel shell, PEEK
material gear,PTFE materials for the static sealing and bearing.
2. It has the characteristics of corrosion resistance, high temperature resistance and not easy to wear.
3. Widely used in medical machine,liquid cooling system,printer,fine chemicals, water treatment printing, cleaning, packaging, food processing,Commercial & industries cooling system,
and other areas of liquid delivery
Normal Parameters:
1. Altitude: ≤ 2500 M
2. Humidity environment: ≤ 75%
3. Fluid viscosity: 50 ~ 2000 CPS
4. Ambient temperature: -30 ~ 50 ℃
5. Fluid temperature: -10 ℃ ≤ T ≤ 100 ℃ (except for the freezing)
6. Working way: continuous working
7. Apply the media of:
acid and alkali, salt, organic solvents, oils.
8. Long Lifetime
Application:
• Medical and surgical equipment • Hemodialysis apparatus
• Laser apparatus • Lubrication
• Ink-Jet printing systems (CIJ Ink Printers to Paint metering and Transfer applications)pump
• Energy/Fuel ( Fuel cell,Hydrogen electrolyzer) • Laboratory instrumentation
Introduction:
1 .Magnetic gear pumps, using magnetic coupling drive without leakage,316 stainless steel shell, PEEK
material gear,PTFE materials for the static sealing and bearing.
2. It has the characteristics of corrosion resistance, high temperature resistance and not easy to wear.
3. Widely used in medical machine,liquid cooling system,printer,fine chemicals, water treatment printing, cleaning, packaging, food processing,Commercial & industries cooling system,
and other areas of liquid delivery
Normal Parameters:
1. Altitude: ≤ 2500 M
2. Humidity environment: ≤ 75%
3. Fluid viscosity: 50 ~ 2000 CPS
4. Ambient temperature: -30 ~ 50 ℃
5. Fluid temperature: -10 ℃ ≤ T ≤ 100 ℃ (except for the freezing)
6. Working way: continuous working
7. Apply the media of:
acid and alkali, salt, organic solvents, oils.
8. Long Lifetime
Application:
• Medical and surgical equipment • Hemodialysis apparatus
• Laser apparatus • Lubrication
• Ink-Jet printing systems (CIJ Ink Printers to Paint metering and Transfer applications)pump
• Energy/Fuel ( Fuel cell,Hydrogen electrolyzer) • Laboratory instrumentation
• Water treatment • Sampling
• Food processing equipment （Coffee pumps, hot and cold drinks, mixing, milk,and carbonation）
• Sanitization • Liquid-Cooling system
• Atmospheric water generator, Atmospheric drinking water devices
• Medical beauty (Aesthetic treatments / Medical laser device/hair removal device)
• Food processing equipment （Coffee pumps, hot and cold drinks, mixing, milk,and carbonation）
• Sanitization • Liquid-Cooling system
• Atmospheric water generator, Atmospheric drinking water devices
• Medical beauty (Aesthetic treatments / Medical laser device/hair removal device)
■ Specifications
| Item Number | Max Head Pressure (Bar) | Max Flow scope (ml/Min) | Power (W) | Voltage (V) | Inlet/Outlet Diameter | ml/rpm (reference 3000RPM) |
| MG317XK/DC24WI | 5 | 5300 | 150 | DC24 | G1/4” | 1.5 |
| MG317XK/DC24WI | 10 | 6500 | 200 | DC24 | G1/4” | 1.5 |
■ Parameter

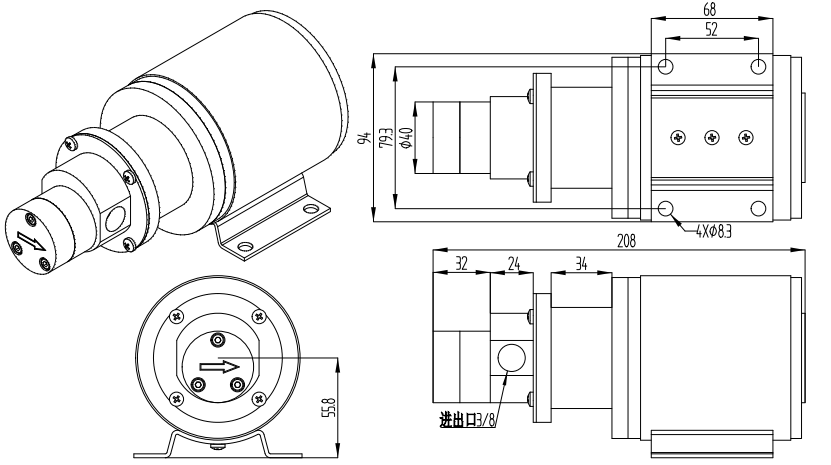

■ Curve & Dimension
