■ Overview
Features
Strong Flushing Force, Good Siphon Effect
Large flow, high efficiency
Intelligent Control
Customizable start & stop time, 5V, PWM rotor speed control, etc
Ultra-quiet Design
Noise 15dB lower than industry average
Low Energy Consumption
High-efficiency motors and rotor design, pump efficiency 30% higher than industry
average
Application：
1.Smart toilet booster
2.Liquid transfer general purpose pumping
4.. Hot water circulating system
5. Electronics Cooling Water Circulation Systems
■ Specifications
| Model | Product Code | Max Water Flow (L/Min) | Rated Voltage(DC) | Rated Current (A) | Max Water Head(M) | Rated Power(W) |
| TL-C04 | TL-C04-A12-4808 | 48 | 12 | 4.7 | 8 | 56.4 |
| TL-C04-A24-5208 | 52 | 24 | 2.8 | 8 | 67.2 | |
| TL-C04-B12-5509 | 55 | 12 | 6.4 | 8.5 | 76.8 | |
| TL-C04-B24-5008 | 50 | 24 | 2.9 | 8 | 69.6 | |
| TL-C04-B24-6012 | 60 | 24 | 5.05 | 12 | 121.2 | |
| TL-C04-C24-5814 | 58 | 24 | 5.33 | 14 | 127.9 |
■ Parameter

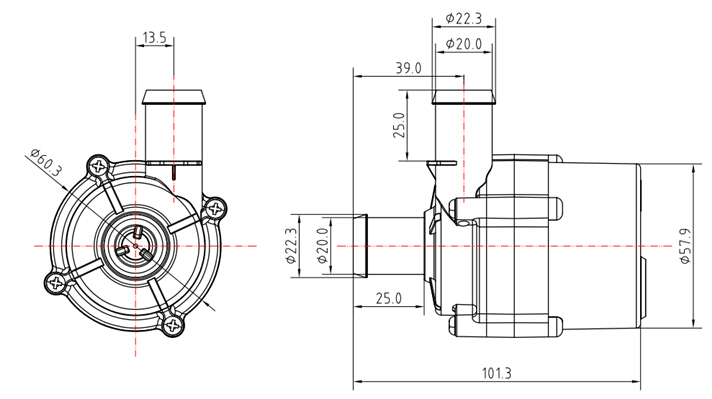

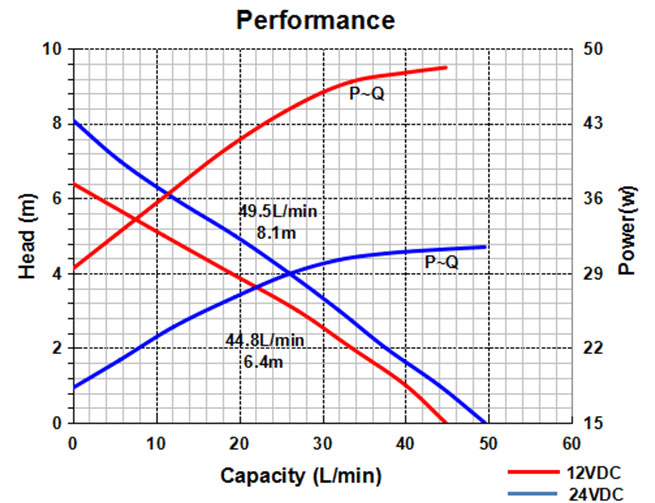

■ Curve & Dimension
.jpg)
